Reinforced Eye Underground Cable Socks

Reinforced Eye Underground Grip

Get in touch

Download info sheet

Save for later

Features and benefits

  • Reinforced eye
  • Coated wire
  • Expanded range
This line of cable socks is specially designed for underground applications. The eye is enclosed in an aluminium tube which provides added support when running within conduit and trenches. Plus these underground pulling socks are made from coated airline wire for added strength and flexibility.

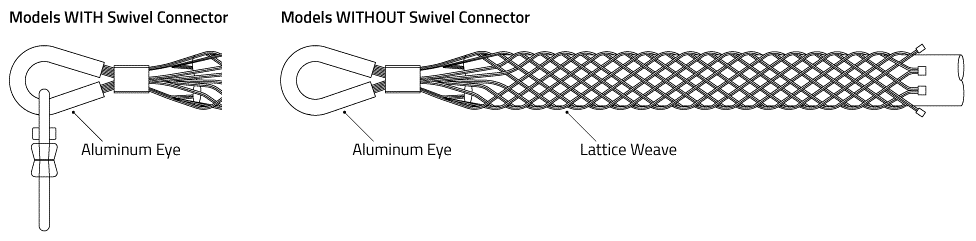

Reinforced Eye Graphic
SINGLE EYE SINGLE / DOUBLE WEAVE PVC COATED GALVANISED - 0.25 - 0.50” (6 - 13mm)
Slingco Part No. Range in (mm) Weave (Coated Galv. Wire) Lattice Length in (mm) Eye Opening in (mm) Approx. Break lbs (kg)
ZCS63550.25-0.50 (6 - 13)Single18 (457)0.70 (18)1,500 (680)
ZCS63560.25-0.50 (6 - 13)Single24 (610)0.70 (18)1,500 (680)
ZCS63570.25-0.50 (6 - 13)Double uncoated18 (457)0.70 (18)1,588 (3,500)
ZCS63580.25-0.50 (6 - 13)Double uncoated24 (610)0.70 (18)1,588 (3,500)
ZCS87170.25-0.50 (6 - 13)Triple24 (610)Swivel Connector4,000 (1,814)
SINGLE EYE SINGLE / DOUBLE / TRIPLE WEAVE PVC COATED GALVANISED - 0.50 - 0.75” (13 - 19MM)
Slingco Part No. Range in (mm) Weave (Coated Galv. Wire) Lattice Length in (mm) Eye Opening in (mm) Approx. Break lbs (kg)
ZCS63590.50-0.75 (13 - 19)Single18 (457)0.70 (18)1,500 (680)
ZCS63600.50-0.75 (13 - 19)Single24 (610)0.70 (18)1,500 (680)
ZCS63610.50-0.75 (13 - 19)Double uncoated18 (457)0.70 (18)4,000 (1,814)
ZCS63620.50-0.75 (13 - 19)Double uncoated24 (610)0.70 (18)4,000 (1,814)
ZCS63630.50-0.75 (13 - 19)Triple12 (305)0.87 (22)5,200 (2,359)
ZCS63640.50-0.75 (13 - 19)Triple18 (457)0.87 (22)5,200 (2,359)
ZCS63650.50-0.75 (13 - 19)Triple24 (610)0.87 (22)5,200 (2,359)
ZCS63660.50-0.75 (13 - 19)Triple36 (914)0.87 (22)5,200 (2,359)
ZCS87180.50-0.75 (13 - 19)Triple24 (610)Swivel Connector8,480 (3,785)
SINGLE EYE SINGLE / DOUBLE / TRIPLE WEAVE PVC COATED GALVANISED - 0.75 - 1.25” (19-32MM)
Slingco Part No. Range in (mm) Weave (Coated Galv. Wire) Lattice Length in (mm) Eye Opening in (mm) Approx. Break lbs (kg)
ZCS63670.75-1.25 (19 - 32)Single18 (457)0.87 (22)3,000 (1,361)
ZCS63680.75-1.25 (19 - 32)Single24 (610)0.87 (22)3,000 (1,361)
ZCS63690.75-1.25 (19 - 32)Double18 (457)0.87 (22)6,000 (2,722)
ZCS63700.75-1.25 (19 - 32)Double24 (610)0.87 (22)6,000 (2,722)
ZCS63710.75-1.25 (19 - 32)Triple18 (457)0.87 (22)7,500 (3,402)
ZCS63720.75-1.25 (19 - 32)Triple24 (610)0.87 (22)10,000 (4,537)
ZCS87190.75-1.25 (19 - 32)Triple25.5 (650)Swivel Connector6,000 (2,722)
SINGLE EYE TRIPLE WEAVE PVC COATED GALVANISED - 1.25 - 4.88” (32 - 124MM)
Slingco Part No. Range in (mm) Weave (Coated Galv. Wire) Lattice Length in (mm) Eye Opening in (mm) Approx. Break lbs (kg)
ZCS63731.25-2.0 (32 - 51)Triple26 (660)1.42 (36)7,500 (3,402)
ZCS63741.25-2.0 (32 - 51)Triple32 (813)1.42 (36)10,500 (4,764)
ZCS87201.25-2.0 (32 - 51)Triple30 (762)Swivel Connector10,500 (4,764)
ZCS63752.0-2.75 (51 - 70)Triple32 (813)1.91 (48.5)10,500 (4,764)
ZCS63762.0-2.75 (51 - 70)Triple38 (965)1.91 (48.5)13,500 (6,125)
ZCS87212.0-2.75 (51 - 70)Triple36 (914)Swivel Connector13,500 (6,125)
ZCS63772.75-3.5 (70 - 89)Triple38 (965)1.91 (48.5)13,500 (6,125)
ZCS63782.75-3.5 (70 - 89)Triple46 (1,168)1.91 (48.5)16,500 (7,486)
ZCS87222.75-3.5 (70 - 89)Triple36 (914)Swivel Connector16,500 (7,486)
ZCS63793.5-4.25 (89 - 108)Triple46 (1,168)1.91 (48.5)16,500 (7,486)
ZCS63803.5-4.25 (89 - 108)Triple52 (1,321)1.91 (48.5)19,500 (8,847)
ZCS87233.5-4.25 (89 - 108)Triple36 (914)Swivel Connector19,500 (8,847)
ZCS63814.25-4.87 (108 - 124)Triple52 (1,321)1.91 (48.5)18,000 (8,167)
ZCS63824.25-4.87 (108 - 124)Triple58 (1,473)1.91 (48.5)19,500 (8,847)
ZCS87244.25-4.87 (108 - 124)Triple40.6 (1,030)Swivel Connector21,000 (9,375)

A note about dimensions and tolerances

SINGLE EYE SINGLE / DOUBLE WEAVE PVC COATED GALVANISED - 6 - 13MM (0.25 - 0.50”)
Slingco Part no. Range mm (in) Weave (Coated Galv. wire) Lattice Length mm (in) Eye Opening mm (in) Approx. break kg (lbs)
ZCS63556 - 13 (0.25-0.50)Single457 (18)18 (0.70)680 (1,500)
ZCS63566 - 13 (0.25-0.50)Single610 (24)18 (0.70)680 (1,500)
ZCS63576 - 13 (0.25-0.50)Double uncoated457 (18)18 (0.70)1,588 (3,500)
ZCS63586 - 13 (0.25-0.50)Double uncoated610 (24)18 (0.70)1,588 (3,500)
ZCS87176 - 13 (0.25-0.50)Triple610 (24)Swivel Connector1,814 (4,000)
SINGLE EYE SINGLE / DOUBLE / TRIPLE WEAVE PVC COATED GALVANISED - 13 - 19MM (0.50 - 0.75”)
Slingco Part no. Range mm (in) Weave (Coated Galv. wire) Lattice Length mm (in) Eye Opening mm (in) Approx. break kg (lbs)
ZCS635913 - 19 (0.50-0.75)Single457 (18)18 (0.70)680 (1,500)
ZCS636013 - 19 (0.50-0.75)Single610 (24)18 (0.70)680 (1,500)
ZCS636113 - 19 (0.50-0.75)Double uncoated457 (18)18 (0.70)1,814 (4,000)
ZCS636213 - 19 (0.50-0.75)Double uncoated610 (24)18 (0.70)1,814 (4,000)
ZCS636313 - 19 (0.50-0.75)Triple305 (12)22 (0.87)2,359 (5,200)
ZCS636413 - 19 (0.50-0.75)Triple457 (18)22 (0.87)2,359 (5,200)
ZCS636513 - 19 (0.50-0.75)Triple610 (24)22 (0.87)2,359 (5,200)
ZCS636613 - 19 (0.50-0.75)Triple914 (36)22 (0.87)2,359 (5,200)
ZCS871813 - 19 (0.50-0.75)Triple610 (24)Swivel Connector3,785 (8,480)
SINGLE EYE SINGLE / DOUBLE / TRIPLE WEAVE PVC COATED GALVANISED - 19-32MM)
Slingco Part no. Range mm (in) Weave (Coated Galv. wire) Lattice Length mm (in) Eye Opening mm (in) Approx. break kg (lbs)
ZCS636719 - 32 (0.75-1.25)Single457 (18)22 (0.87)1,361 (3,000)
ZCS636819 - 32 (0.75-1.25)Single610 (24)22 (0.87)1,361 (3,000)
ZCS636919 - 32 (0.75-1.25)Double457 (18)22 (0.87)2,722 (6,000)
ZCS637019 - 32 (0.75-1.25)Double610 (24)22 (0.87)2,722 (6,000)
ZCS637119 - 32 (0.75-1.25)Triple457 (18)22 (0.87)3,402 (7,500)
ZCS637219 - 32 (0.75-1.25)Triple610 (24)22 (0.87)4,537 (10,000)
ZCS871919 - 32 (0.75-1.25)Triple650 (25.5)Swivel Connector2,722 (6,000)
SINGLE EYE TRIPLE WEAVE PVC COATED GALVANISED - 32 - 124MM (1.25 - 4.88”)
Slingco Part no. Range mm (in) Weave (Coated Galv. wire) Lattice Length mm (in) Eye Opening mm (in) Approx. break kg (lbs)
ZCS637332 - 51 (1.25-2.0)Triple660 (26)36 (1.42)3,402 (7,500)
ZCS637432 - 51 (1.25-2.0)Triple813 (32)36 (1.42)4,764 (10,500)
ZCS872019 - 32 (0.75-1.25)Triple762 (30)Swivel Connector4,764 (10,500)
ZCS637551 - 70 (2.0-2.75)Triple813 (32)48.5 (1.91)4,764 (10,500)
ZCS637651 - 70 (2.0-2.75)Triple965 (38)48.5 (1.91)6,125 (13,500)
ZCS872151 - 70 (2.0-2.75)Triple914 (36)Swivel Connector6,125 (13,500)
ZCS637770 - 89 (2.75-3.5)Triple965 (38)48.5 (1.91)6,125 (13,500)
ZCS637870 - 89 (2.75-3.5)Triple1,168 (46)48.5 (1.91)7,486 (16,500)
ZCS872270 - 89 (2.75-3.5)Triple914 (36)Swivel Connector7,486 (16,500)
ZCS637989 - 108 (3.5-4.25)Triple1,168 (46)48.5 (1.91)7,486 (16,500)
ZCS638089 - 108 (3.5-4.25)Triple1,321 (52)48.5 (1.91)8,847 (19,500)
ZCS872389 - 108 (3.5-4.25)Triple914 (36)Swivel Connector8,847 (19,500)
ZCS6381108 - 124 (4.25-4.87)Triple1,321 (52)48.5 (1.91)8,167 (18,000)
ZCS6382108 - 124 (4.25-4.87)Triple1,473 (58)48.5 (1.91)8,847 (19,500)
ZCS8724108 - 124 (4.25-4.87)Triple1,030 (40.6)Swivel Connector9,375 (21,000)

A note about dimensions and tolerances

Don't see the product you need?

Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
