Stringing Block - Flip Gate

SOME DISTRIBUTION LIMITS APPLY
Please note: some Slingco products are available only in specific markets and through limited distribution channels. Contact Slingco for product availability.
Stringing Block - Flip Gate

Get in touch

Download info sheet

Save for later

Features and benefits

  • Lightweight, durable aluminium
  • Low-friction bearings
  • Crossarm bracket and ball clevis attachments also available

Used in conjunction with purpose-designed accessories Slingco 7" distribution stringing blocks have proven extremely popular with utility operators and contractors for their exceptional versatility in terms of installation applications and locations. Their low-friction bearings deliver high efficiency, which helps to maximise stringing distances while minimising pulling tensions and reducing loads on stringing equipment.

We also offer three crossarm bracket options and various ball clevis attachments.

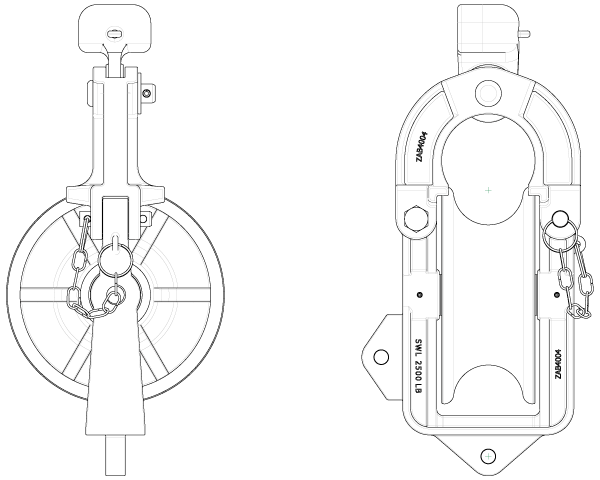

Stringing Block - Flip Top
Slingco Part No. Description Weight (kg) WLL (kg) Height (mm) Sheave size (mm) Bottom of groove (mm) Groove radius (mm)
ZAB40047” Flip Top Aluminium Distribution Block3.761,134384.2177.8114.357.15

A note about dimensions and tolerances

Slingco Part No. Description Weight (lb) WLL (lb) Height (in) Sheave Size (in) Bottom of Groove (in) Groove Radius (in)
ZAB40047” Flip Top Aluminium Distribution Block8.32,50015.12574.52.25

A note about dimensions and tolerances

Don't see the product you need?

Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
