Stringing Block - Spring Gate

SOME DISTRIBUTION LIMITS APPLY
Please note: some Slingco products are available only in specific markets and through limited distribution channels. Contact Slingco for product availability.
Stringing Block - Spring Gate

Get in touch

Download info sheet

Save for later

Features and benefits

  • Lightweight, durable aluminium
  • Low-friction bearings
  • Crossarm bracket and ball clevis attachments also available

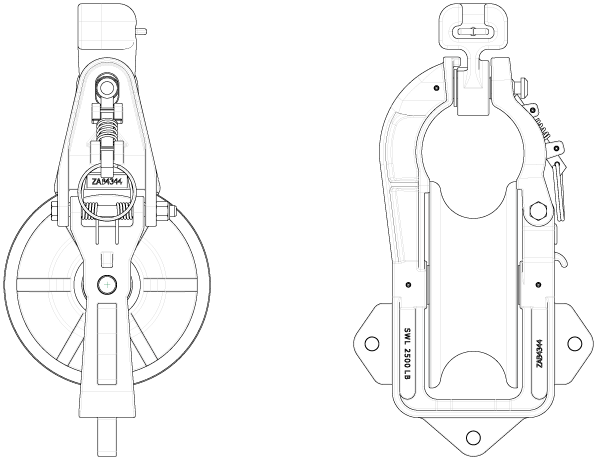

The ZAB4344 is our spring gate 7” aluminium distribution stringing block. This block is used for the transfer or replacement of aerial conductors. Its low friction bearings deliver high efficiency, which helps to maximise stringing distances whilst minimising pulling tensions and reducing the load on stringing equipment.

The gate has been designed for use with hot stick and/or hand operation and can be locked in the open position to allow the linesman to freely remove the conductor. Once the gate is released, the gate closes and locks automatically. The ZAB4344 has three mounting positions and is compatible with Slingco’s crossarm bracket options and ball clevis attachments.

Stringing Block - Spring Gate
Slingco Part No. Description Weight (kg) WLL (kg) Height (mm) Sheave Size (mm) Bottom of Groove (mm) Groove Radius (mm)
ZAB40047” Flip Top Aluminium Distribution Block3.761,134384.2177.8114.357.15

A note about dimensions and tolerances

Slingco Part No. Description Weight (lb) WLL (lb) Height (in) Sheave Size (in) Bottom of Groove (in) Groove Radius (in)
ZAB43447” Spring Open Aluminium Distribution Block9.22,50015.34474.52.25

A note about dimensions and tolerances
