Bollard Clamp

Bollard Clamp

Get in touch

Download info sheet

Save for later

Features and benefits

  • Tension without damage to rope, outer coating or underlying layers
  • Secures the rope up to 3x WLL
  • Weighs only 3kg
  • Suitable for ropes 12-15mm diameter

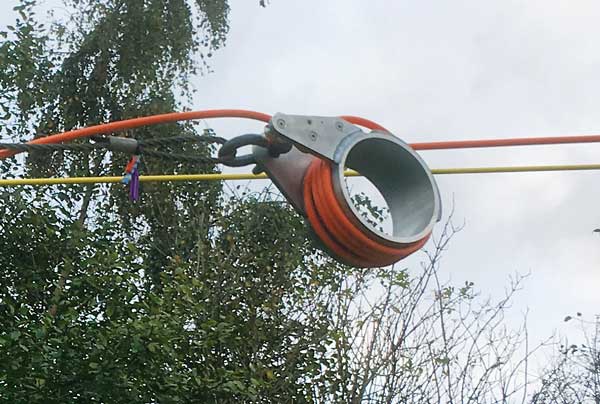

The Bollard Clamp is an easy to use tensioning device that can be used without risk of damage to the tensioned rope. This is a major advantage over standard types of gripping devices, which could potentially crush or compress the rope or its outer coating.

Installation of the Bollard Clamp is simple, requiring no tools, and the device can be fitted anywhere along the length of the rope using a spring-loaded rope captivation lever. One installed, the clamp utilises the friction created over a large area of the rope to enable the required tension to the specified WLL.

N.B. Figures given in the table are indicative only. Nominal figures/actuals are as per datasheet with tolerances of +/-5%. Datasheets available on request.

WLL Proof load MBL Material Weight Barrel diameter Rope suitability
17kN25.5kN51kNAluminium (6082/1050)3 kg200mm12-15mm

A note about dimensions and tolerances
