Safety Spring

Features and benefits

  • Two working load strengths: 40 lbs & 80 lbs
  • Spring compresses to relieve strain

Support the dead weight of cables. Used in conjunction with support, service or bus drop grips. These safety springs relieve strain by dampening pull vibrations. Available in two working load strengths. The safety spring helps prevent pull outs. Avoid downtime and accidents from disconected cables.

May be used with any support grips. Attach grip eye to bottom of spring.

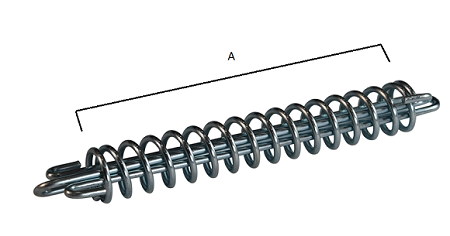

SafetySpringDwg
Slingco Part No. Working Load (lb) Diameter (in) Spring Length ""A"" (in)
ZCS8560400.756.1
ZCS85618016.1

A note about dimensions and tolerances

Slingco Part No. Working Load (kg) Diameter (mm) Spring Length "A" (mm)
ZCS856018.1419155
ZCS856136.2825.4155

A note about dimensions and tolerances

Don't see the product you need?

Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
