Bus Drop Grips

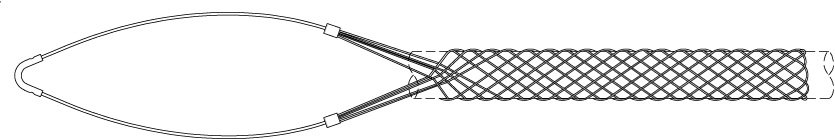

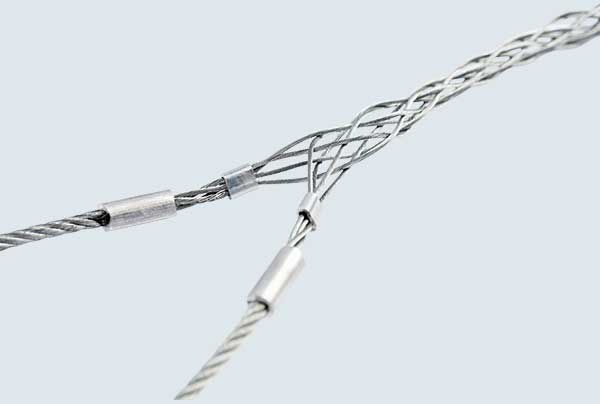

Bus drop grips

Get in touch

Download info sheet

Save for later

Features and benefits

  • Lightweight application
  • Reduces strain on electrical connections
  • Available in Galvanized or Stainless Steel Wire

Lightweight easy to use Bus Drop Grips are perfect for supporting cables in such applications as data centres, control centres and other wiring-to-rack applications. Available in Galvanized or Stainless Steel.

Bus drop grips
Slingco Part No. Range (in) Wire Material Eye length (in) Approx. Break Load (lb)
ZCS69690.22 - 0.32Galvanized3.5350
ZCS69700.30 - 0.43Galvanized4450
ZCS69710.41 - 0.56Galvanized4.75550
ZCS69720.53 - 0.73Galvanized61,000
ZCS69730.70 - 0.85Galvanized6.751,400
ZCS69740.82 - 1.00Galvanized81,400
ZCS69750.96 - 1.25Galvanized9.51,500
ZCS097440.22 - 0.32304 Stainless Steel3.5100
ZCS097450.30 - 0.43304 Stainless Steel4260
ZCS097460.41 - 0.56304 Stainless Steel4.75550
ZCS097170.53 - 0.73304 Stainless Steel61,000
ZCS097470.70 - 0.85304 Stainless Steel6.751,400
ZCS097480.82 - 1.00304 Stainless Steel8.01,400
ZCS097490.96 - 1.25304 Stainless Steel9.51,400
ZCS099680.41 - 0.56ALL 316 Stainless Steel4.75550
ZCS099690.53 - 0.73ALL 316 Stainless Steel61,000
ZCS104000.70 - 0.85ALL 316 Stainless Steel6.751,400
ZCS104010.82 - 1.00ALL 316 Stainless Steel8.01,400

A note about dimensions and tolerances

Slingco Part No. Range (mm) Wire Material Eye Length (mm) Approx. Break Load (kg)
ZCS69696.1 - 8.1Galvanized88.9158
ZCS69708.1 - 10.9Galvanized101.6204
ZCS697110.9 - 14.2Galvanized120.6249
ZCS697214.2 - 18.5Galvanized152.4453
ZCS697318.5 - 21.6Galvanized171.4635
ZCS697421.6 - 25.4Galvanized203.2635
ZCS697525.4 - 31.7Galvanized241.3680
ZCS097446.1 - 8.1304 Stainless Steel88.945.36
ZCS097458.1 - 10.9304 Stainless Steel101.6117.9
ZCS0974610.9 - 14.2304 Stainless Steel120.6249
ZCS0971714.2 - 18.5304 Stainless Steel152.4453
ZCS0974718.5 - 21.6304 Stainless Steel171.4635
ZCS0974821.6 - 25.4304 Stainless Steel203.2635
ZCS0974925.4 - 31.7304 Stainless Steel241.3680
ZCS0996810.9 - 14.2ALL 316 Stainless Steel120.6249
ZCS0996914.2 - 18.5ALL 316 Stainless Steel152.4453
ZCS1040018.5 - 21.6ALL 316 Stainless Steel171.4635
ZCS1040121.6 - 25.4ALL 316 Stainless Steel203.2635

A note about dimensions and tolerances

Related products

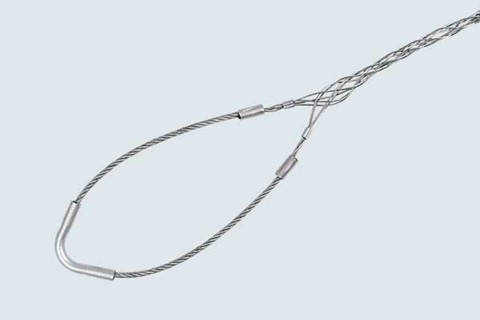

Service drop grips
