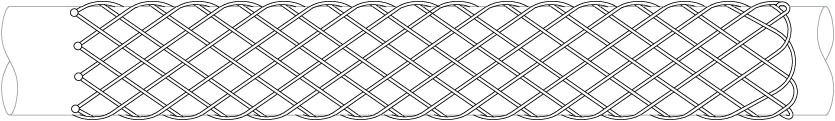

OE Type - Open Ended Cable Splicing Grip

Get in touch

888 685 9478
Email us
Contact form

Download info sheet

Save for later

Features and benefits

Available in galvanized steel or stainless steel
Single, double triple weave configuration
Range from 10mm - 140mm

Ideal for joining two cables to form a continuous loop. Typical application: replacement of lift cables, where the old cable would be attached to the new one, and the cable then fed around with ease. Also used to temporarily splice cable and conductor where torsion forces are NOT an issue. Torsion should be released prior to splicing. Where torsion is present a swivel and two grips should be used.

Metric
Imperial

Slingco Part No.	Range (mm)	Lattice Weave	Lattice Length (mm)	Approx. Break Load (kg)
Open Ended Standard Grip - Galvanized
ZCS0313	6 - 13	Single	380	760
ZCS6420	6 - 13	Double	559	1,588
ZCS0314	13 - 19	Single	610	1,015
ZCS6421	13 - 19	Double	762	1,815
ZCS6425	13 - 19	Multi	1,779	3,400
ZCS0315	19 - 25	Single	710	2,540
ZCS6422	19 - 25	Triple	762	3,630
ZCS6426	19 - 25	Multi	2,032	5,352
ZCS0316	25 - 38	Single	815	3,555
ZCS6423	25 - 38	Double	915	4,537
ZCS6427	25 - 38	Multi	2,285	9,070
ZCS0317	38 - 50	Double	915	5,080
ZCS0318	50 - 63	Double	1,065	5,080
ZCS1158	63 - 89	Double	1,220	6,095
ZCS1159	89 - 115	Double	1,370	7,110
ZCS6424	108 - 124	Triple	1,400	8,847
ZCS1975	115 - 140	Double	1,370	7,110

Slingco Part No.	Range (mm)	Lattice Weave	Lattice Length (mm)	Approx. Break Load (kg)
Open Ended Standard Grip - 316 Stainless Steel
ZCS1995	6 - 13	Single	380	610
ZCS1996	13 - 19	Single	610	810
ZCS1997	19 - 25	Single	710	2,030
ZCS1998	25 - 38	Single	815	2,845
ZCS1999	38 - 50	Double	915	4,065
ZCS2000	50 - 63	Double	1,065	4,065
ZCS2001	63 - 89	Double	1,220	4,875
ZCS2002	89 - 115	Double	1,370	5,690
ZCS2003	115 - 140	Double	1,370	5,690
ZCS11923	165 - 191	Double	3,048	5,690

A note about dimensions and tolerances

Slingco Part No.	Range (in)	Lattice Weave	Lattice Length (in)	Approx. Break Load (lb)
Open Ended Standard Grip - Galvanized
ZCS0313	0.25 - 0.50	Single	15	1,680
ZCS6420	0.25 - 0.50	Double	22	3,500
ZCS0314	0.50 - 0.75	Single	24	2,240
ZCS6421	0.50 - 0.75	Double	30	4,000
ZCS6425	0.50 - 0.75	Multi	70	7,500
ZCS0315	0.75 - 1.00	Single	28	5,600
ZCS6422	0.75 - 1.00	Triple	30	8,000
ZCS6426	0.75 - 1.00	Multi	80	11,800
ZCS0316	1.00 - 1.50	Single	32	7,840
ZCS6423	1.00 - 1.50	Double	36	10,000
ZCS6427	1.00 - 1.50	Multi	90	20,000
ZCS0317	1.50 - 2.00	Double	36	11,200
ZCS0318	2.00 - 2.50	Double	42	11,200
ZCS1158	2.50 - 3.50	Double	48	13,440
ZCS1159	3.50 - 4.50	Double	54	15,680
ZCS6424	4.25 - 4.88	Triple	55	19,500
ZCS1975	4.50 - 5.50	Double	54	15,680

Slingco Part No.	Range (in)	Lattice Weave	Lattice Length (in)	Approx. Break Load (lb)
Open Ended Standard Grip - 316 Stainless Steel
ZCS1995	0.25 - 0.50	Single	15	1,344
ZCS1996	0.50 - 0.75	Single	24	1,792
ZCS1997	0.75 - 1.00	Single	28	4,480
ZCS1998	1.00 - 1.50	Single	32	6,272
ZCS1999	1.50 - 2.00	Double	36	8,960
ZCS2000	2.00 - 2.50	Double	42	8,960
ZCS2001	2.50 - 3.50	Double	48	10,752
ZCS2002	3.50 - 4.50	Double	54	12,544
ZCS2003	4.50 - 5.50	Double	54	12,544
ZCS11923	6.50 - 7.50	Double	120	12,544

A note about dimensions and tolerances

Related products

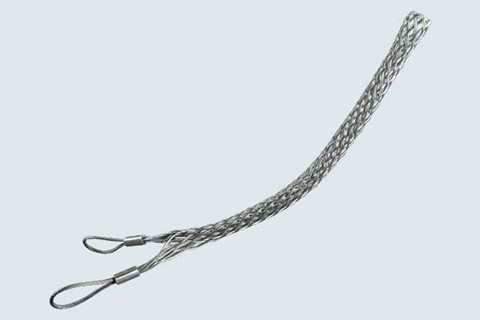

DE Type - Double Eye Cable Grips

Ideal for pulling light to medium loads; the main advantage over the single eye cable grip is the cable b...

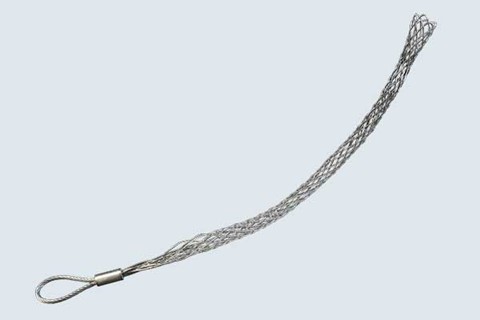

OS Type – Offset Eye Cable Grips

Similar to the SE Type single eye cable grip, but for when offset positioning is required. Excellent for ...

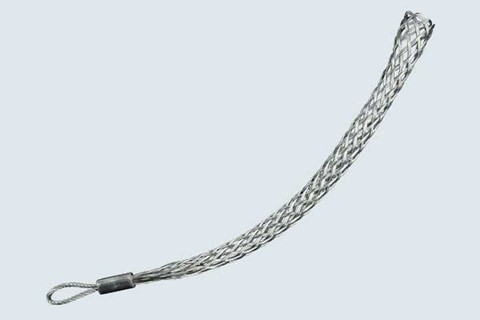

SE Type - Single Eye Cable Grips
