You are here: Home Products Tools & Accessories Grounding Clamps

Grounding Clamps

Grounding Clamps

Get in touch

Download info sheet

Save for later

Features and benefits

  • Meets ASTM F855 specification
  • Line range up to 1.5” (38 mm)
  • Adjustable to ensure secure connection between clamp and cable
  • Serrated jaws
  • Available with T-handle or Eye Bolt

Providing safe and effective grounding connections.

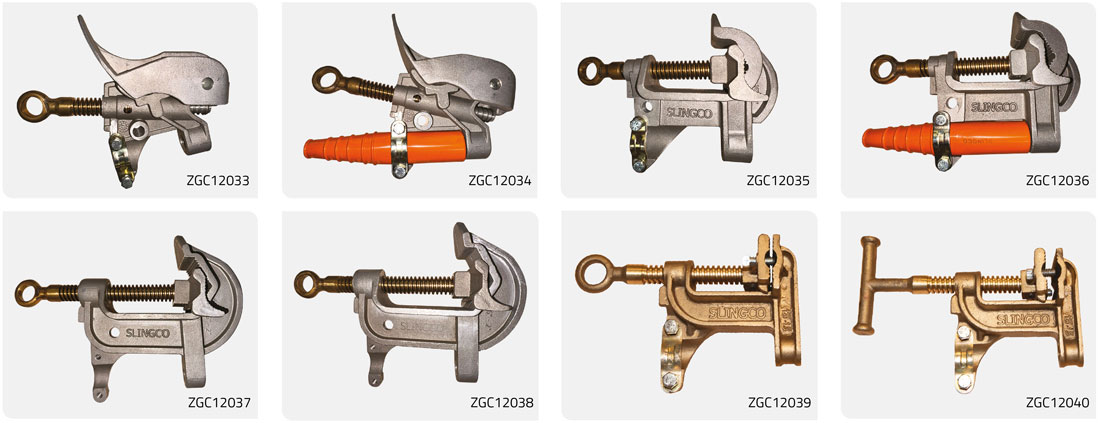

Slingco bronze flat face clamps meet ASTM F855 and have a maximum line range of 1.5” (38 mm) which allows them to be used with a wide variety of grounding applications.

There are set screws in the moveable jaw which allows the user to adjust and make sure that there is a secure connection between the clamp and cable. The Slingco flat face clamps come with serrated jaws and are available with a T-handle or Eye Bolt.

Slingco Part. No. Description Class/ASTM Grade Line Range (in) Weight (lb)
ZGC120391.5” (38 mm) Bronze Flat Face Clamp w/ Eye BoltClass: B, Grade: 50.125–1.501.98
ZGC120401.5” (38 mm) Bronze Flat Face Clamp w/ T-HandleClass: B, Grade: 50.125–1.502.16

A note about dimensions and tolerances

Slingco Part. No. Description Class/ASTM Grade Line Range (mm) Weight (kg)
ZGC120391.5” (38 mm) Bronze Flat Face Clamp w/ Eye BoltClass: B, Grade: 53.18-38.000.90
ZGC120401.5” (38 mm) Bronze Flat Face Clamp w/ T-HandleClass: B, Grade: 53.18-38.000.98

A note about dimensions and tolerances

Don't see the product you need?

Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
