Fiber Optic Cable Grips

Fiber optic cable pulling grips

Get in touch

Download info sheet

Save for later

Features and benefits

  • Ranges from 2.5mm to 25mm
  • Protective shoulders to prevent abrasion
  • Flexible for easy install

Dual weave design from galvanized wire rope. Used for the installation of fiber optic cables for either overhead or underground applications. Made of Galvanized Steel.

Fibre optic cable grips
Slingco Part No. Range (mm) Lattice Length (mm) Overall Length (mm) Approx. Break Load (kg)
ZCS20082.5 - 5.6265455431
ZCS20095.3 - 9.2370560748
ZCS20108.1 - 12.5470690998
ZCS201110.7 - 15.85157351,247
ZCS201213.5 - 19.15958151,678
ZCS201316.3 - 22.46458651,928
ZCS201419.1 - 25.57209401,928

A note about dimensions and tolerances

Slingco Part No. Range (in) Lattice Length (in) Overall Length (in) Approx. Break Load (lb)
ZCS20080.11 - 0.231118950
ZCS20090.21 - 0.3615221,650
ZCS20100.32 - 0.4919272,200
ZCS20110.42 - 0.6220292,750
ZCS20120.53 - 0.7523323,700
ZCS20130.64 - 0.8825344,250
ZCS20140.75 - 1.0027374,250

A note about dimensions and tolerances

Related products

OS type offset eye cable grips

Similar to the SE Type single eye cable grip, but for when offset positioning is required. Excellent for ...

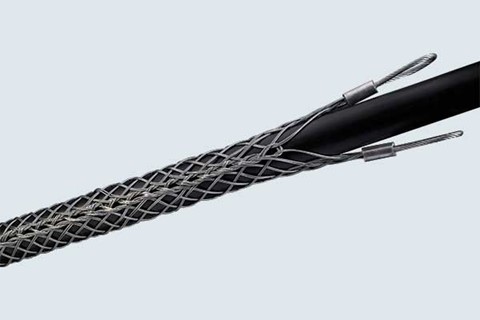

LU type lace up cable grips
