I-Grip Strain Relief

I-Grip

Get in touch

Download info sheet

Save for later

Features and benefits

  • Two eye connectors on grip
  • Galvanized wire with aluminum connectors
  • Designed for use with cord clamps/plugs
Strain Relief mesh grip with crimped eye connectors for easy attachment to cord clamps. Eye connectors allow for attachment with screws for secure placement and hold. Made of galvanized wire these grips come in a variety of cable ranges. When installed relieves strain from bend angle and secures cord from pull out potential. Connectors made of aluminum.

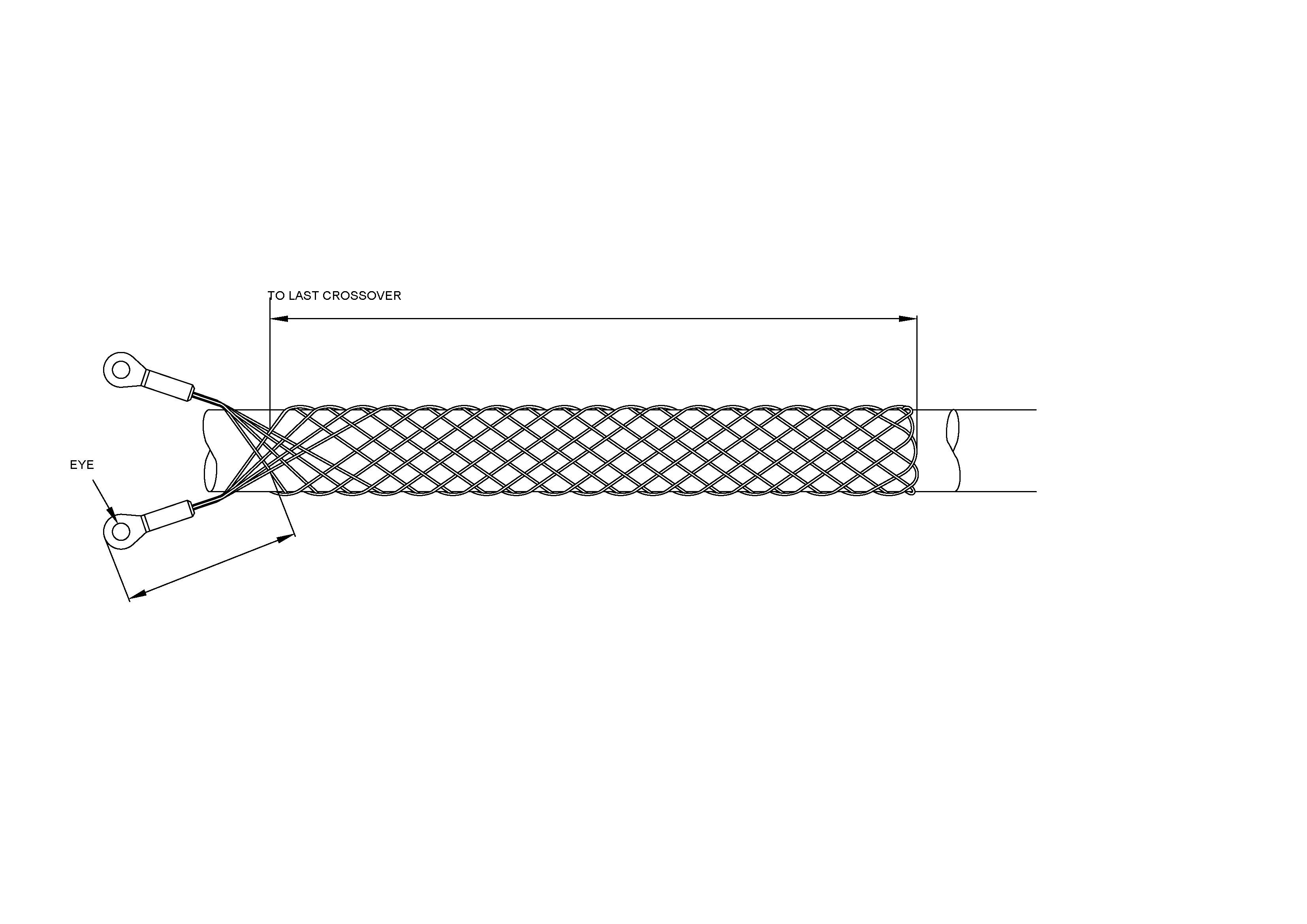

IGrip Drawing
Slingco Part No. Size Range (in) Mesh Length (in) Eye Opening (in) Approx. Break Load (lb)
ZCS85270.22 - 0.324.50.32100
ZCS85130.30 - 0.434.50.32180
ZCS85140.40 - 0.5650.32180
ZCS85150.52 - 0.736.50.32450
ZCS85160.70 - 0.858.50.32600
ZCS85170.82 - 1.008.50.32600
ZCS85180.94 - 1.2511.750.32600
ZCS115601.75 - 2.011.750.25600

A note about dimensions and tolerances

Slingco Part No. Size Range (mm) Mesh Length (mm) Eye Opening (mm) Approx. Break Load (kg)
ZCS85275.6 - 8.1114.38.145.36
ZCS85137.62 - 11114.38.181.64
ZCS851410 - 141278.181.64
ZCS851513.2 - 19157.58.1204
ZCS851618 - 222168.1272
ZCS851721 - 252168.1272
ZCS851824 - 32298.58.1272
ZCS1156044.45 - 50.8298.56.3272

A note about dimensions and tolerances

Don't see the product you need?

Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
