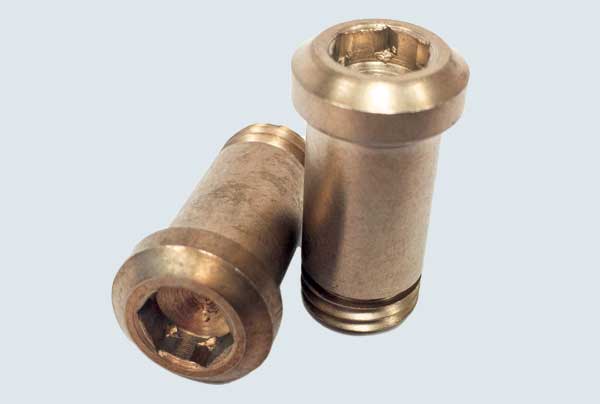

Replacement pins for the popular connectors.
Swivel or Connector Model | Replacement Pin (HEX) | Replacement Pin (Slotted) |
---|---|---|
ZSW2091 | SWI2859 | SWI2331 |
ZSW2092 | SWI2810 | SWI2332 |
ZSW2093 | SWI2339 | SWI2333-T |
ZSW2094 | SWI2341 | SWI2334 |
ZSW2096, ZSW6122 | SWI2343 | SWI3571 |
ZSW2097 | SWI2344 | SWI3565 |
ZSW2929 | SWI2801 | SWI2802 |
ZSW2649 | SWI2648 | SWI2646 |
ZSW2857 | SWI2748 | SWI3429 |
ZSW6123 | SWI5184 | |
ZSW6554 | SWI2859 | |
ZSW6555 | SWI2339 | |
ZSW6556 | SWI5309 | |
ZSW6557, ZSW6558, ZSW6559, ZSW6560 | SWI5310 |
Note:
All Slingco Line Pulling Swivels are designed for straight line pulling and will not support side loads as would be encountered traveling over a bull wheel. Swivel selection should be based on pulling line diameter, grip size, opening dimensions, pin sizes, working load, and sheave groove diameter. Swivels are not designed for general lifting.
Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
