Slingco’s Hydraulic Crimping Tools are designed to crimp sleeves and lugs on ACSR and ACAR transmission & distribution cables using dies that meet the standards of the utility industry. Our crimping tools are ideal for use in constructing substations and transmission lines.
The Single-Acting Crimping Tool uses hydraulic pressure to advance the ram into position, and an internal spring to return the ram to the original position. The Double-Acting Crimping Tool advances and returns the ram using hydraulic pressure alone, eliminating the possibility of the ram sticking or becoming jammed.
Our Hydraulic Crimping Tools come in a steel carrying case, and are lightweight and portable. Our crimping tools accept Slingco S60 Dies, or any shell-type dies used with Alcoa or Burndy 60-ton or 100-ton crimping tools.
| Slingco Part No. | Tool Type | Crimp Force (Tons) | Operating Pressure | Tool Weight (lb) | Oil Required (cc) |
|---|---|---|---|---|---|
| TCR7003 | Single Action | 60 | 10,000 psi (700 bar) | 47 | 308 |
| TCR7018 | Double Action | 60 | 10,000 psi (700 bar) | 51 | 314 |
| TCR08490 | Single Action | 100 | 10,000 psi (700 bar) | 78 | 422 |
| Slingco Part No. | Slingco Ref. | Alcoa Equiv. |
|---|---|---|
| TCR7067 | S60-10SH | 6010SH |
| TCR7068 | S60-12SH | 6012SH |
| TCR7069 | S60-14SH | 6014SH |
| TCR7070 | S60-16SH | 6016SH |
| TCR7071 | S60-18SH | 6018SH |
| TCR7072 | S60-20SH | 6020SH |
| TCR7073 | S60-74SH | 6074SH |
| TCR7074 | S60-75SH | 6075SH |
| TCR7075 | S60-76SH | 6076SH |
| TCR7076 | S60-20AH | 6020AH |
| TCR7077 | S60-24AH | 6024AH |
| TCR7078 | S60-27AH | 6027AH |
| TCR7079 | S60-30AH | 6030AH |
| TCR7080 | S60-34AH | 6034AH |
| TCR7081 | S60-36AH | 6036AH |
| TCR7082 | S60-38AH | 6038AH |
| TCR7083 | S60-40AH | 6040AH |
| TCR7084 | S60-74AH | 6074AH |
| TCR7085 | S60-75AH | 6075AH |
| TCR7086 | S60-76AH | 6076AH |
| TCR7087 | S60-07CD | 6007CD |
| TCR7088 | S60-08CD | 6008CD |
| TCR7089 | S60-09CD | 6009CD |
| TCR7090 | S60-10CD | 6010CD |
| TCR7091 | S60-11CD | 6011CD |
| TCR7092 | S60-12CD | 6012CD |
| TCR7093 | S60-13CD | 6013CD |
| TCR7094 | S60-14CD | 6014CD |
| TCR7095 | S60-15CD | 6015CD |
| TCR7096 | S60-16CD | 6016CD |
| TCR7097 | S60-17CD | 6017CD |
| Slingco Part No. | Slingco Ref. | Alcoa Equivalent |
|---|---|---|
| TCR08544 | S100-10SH | 10010SH |
| TCR08545 | S100-12SH | 10012SH |
| TCR08546 | S100-14SH | 10014SH |
| TCR08547 | S100-16SH | 10016SH |
| TCR08548 | S100-18SH | 10018SH |
| TCR08549 | S100-20SH | 10020SH |
| TCR08550 | S100-74SH | 10074SH |
| TCR08551 | S100-75SH | 10075SH |
| TCR08552 | S100-20AH | 10020AH |
| TCR08553 | S100-24AH | 10024AH |
| TCR08554 | S100-27AH | 10027AH |
| TCR08555 | S100-30AH | 10030AH |
| TCR08556 | S100-34AH | 10034AH |
| TCR08557 | S100-36AH | 10036AH |
| TCR08558 | S100-38AH | 10038AH |
| TCR08559 | S100-40AH | 10040AH |
| TCR08560 | S100-74AH | 10074AH |
| TCR08561 | S100-75AH | 10075AH |
| TCR08562 | S100-76AH | 10076AH |
| TCR08563 | S100-42AH | 10042AH |
| TCR08564 | S100-44AH | 10044AH |
| TCR08565 | S100-46AH | 10046AH |
| TCR08566 | S100-48AH | 10048AH |
| TCR08567 | S100-07CD | 10007CD |
| TCR08568 | S100-08CD | 10008CD |
| TCR08569 | S100-09CD | 10009CD |
| TCR08570 | S100-10CD | 10010CD |
| TCR08571 | S100-11CD | 10011CD |
| TCR08572 | S100-12CD | 10012CD |
| TCR08573 | S100-13CD | 10013CD |
| TCR08574 | S100-14CD | 10014CD |
| TCR08575 | S100-15CD | 10015CD |
| TCR08576 | S100-16CD | 10016CD |
| TCR08577 | S100-17CD | 10017CD |
| TCR08578 | S100-18CD | 10018CD |
| TCR08579 | S100-19CD | 10019CD |
| TCR08580 | S100-20CD | 10020CD |
| Slingco Part No. | Description | For Crimper No. |
|---|---|---|
| TCR09048 | Seal Kit | TCR7003 60 Ton Single Action |
| TCR09937 | Detent Kit | TCR7003 60 Ton Single Action |
| TCR10356 | Seal Kit | TCR7018 60 Ton Double Action |
| TCR09937 | Detent Kit | TCR7018 60 Ton Double Action |
| TCR09918 | Seal Kit | TCR08490 100 Ton |
| TCR09926 | Detent Kit | TCR08490 100 Ton |

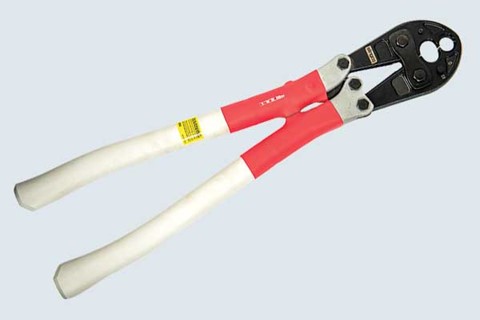

Slingco’s Mechanical Crimping Tools have been created to complete the variety of utility distribution ser...
Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
