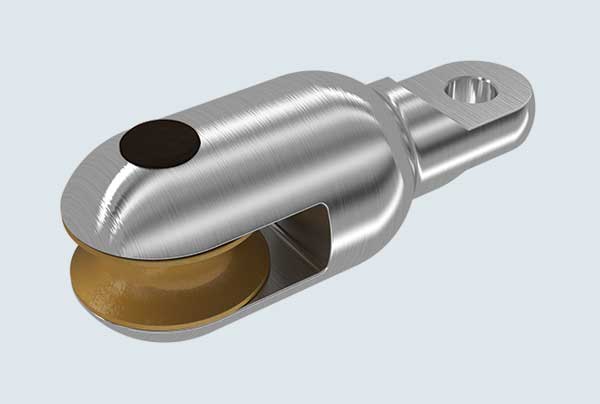

Rope to Swivel Connectors

Rope to swivel connectors

Get in touch

Download info sheet

Save for later

Features and benefits

  • Fitted with high strength pins and smooth rollers
  • No fraying or damage to the rope
  • Fitted with high strength hex pins

Use to connect rope, swivels and other objects. With high strength pins and smooth rollers you can safely connect rope without fear of fraying or damage. Connectors have high strength hex pins.

Slingco Part No. Safe working load (kg) Max rope dia. (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (kg)
ZSW65593,17022.250.8241813512.713.51.23
ZSW65606,80022.250.8241813716.7180.91

A note about dimensions and tolerances

Slingco Part No. Safe working load (lb) Max rope dia. (in) A (in) B (in) C (in) D (in) E (in) F (in) Weight (lb)
ZSW65597,0000.87520.9380.6885.3130.50.5312.70
ZSW656015,0000.87520.9380.6885.3130.6560.752.00

A note about dimensions and tolerances

Related products

Rope to rope connectors

Use to connect rope, swivels and other objects. With high strength pins and smooth rollers you can safely...

90 degree connectors

Use to connect rope, swivels and other objects. With high strength pins and smooth rollers you can safely...

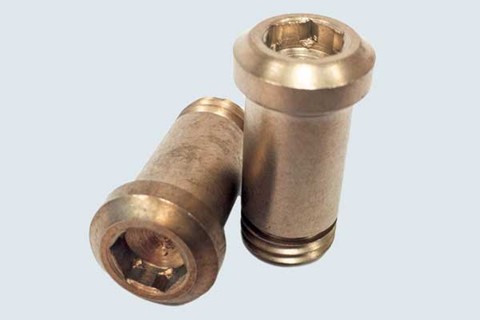

Swivel & Connector Grip Replacement Pins
