Hose Whip Restraint

Hose_Whip_Restraint

Get in touch

Download info sheet

Save for later

Features and benefits

  • Easy to install
  • Low cost safety solution
  • For air hoses up to 200psi (5 to 1 safety factor)

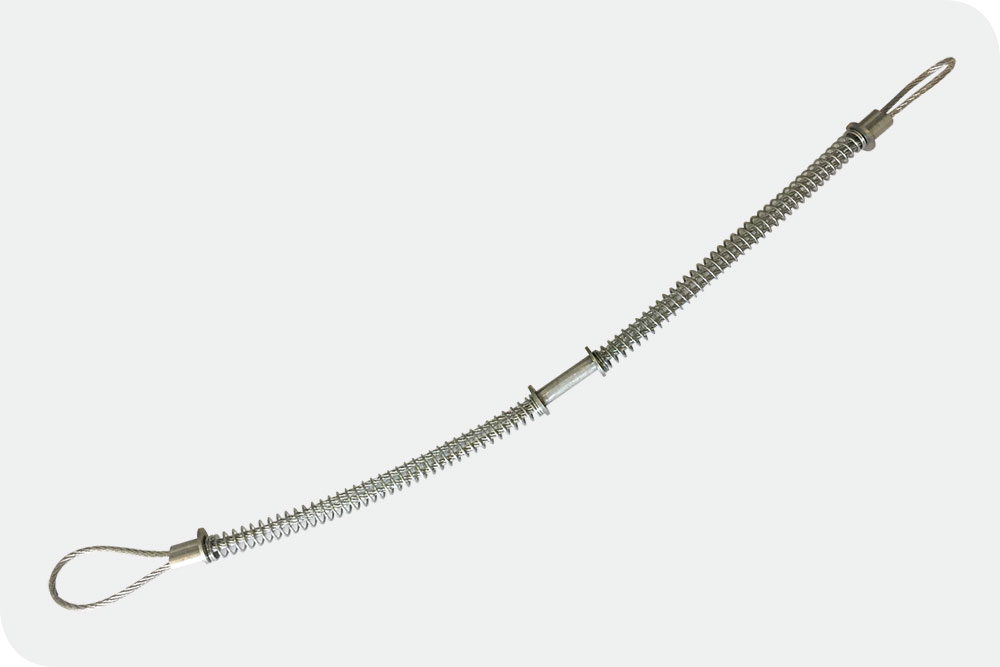

Prevent damage or injury from whipping action should an air hose disengage from coupling. The strong steel cable prevents hose-whip accidents in the event of hose or coupling failure.

Easily fitted spring loaded loops grip the hose firmly. Select the hose whip restraint that matches your air hose diameter. For hose diameters from 1/4" to 3".

Installation is quick and easy and once installed provides peace of mind.

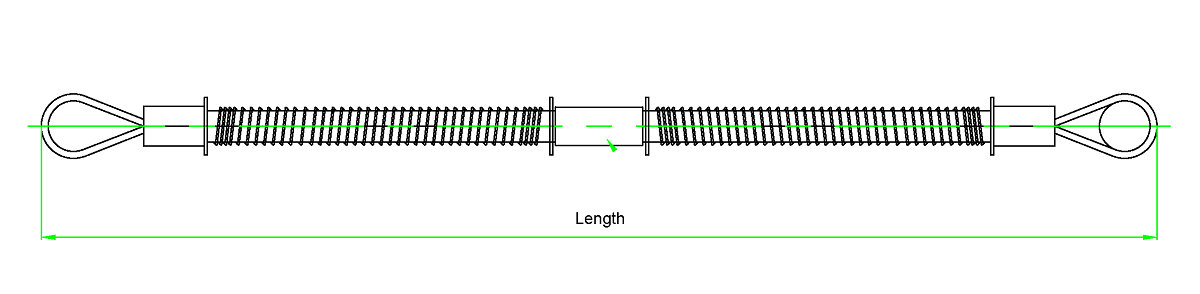

HoseWhipRestraintDwg
Slingco Part No. Hose Range in (mm) Wire Thickness mm Length in (mm) Material Max WP Psi WLL kN
ZWR142713/8 - 1 1/4 (10-32)3.522 (550)Galvanized2006.5
ZWR115341/2 - 1 1/4 (13-32)322 (550)Galvanized2005.7
ZWR115301/2 - 1 1/4 (13-32)322 (550)Stainless Steel2005.7
ZWR142721 1/4 - 2 (32 - 50)633 (850)Galvanized20017.6
ZWR115351 1/2 - 3.0 (38-76)642 (1060)Galvanized20021.2
ZWR142732 1/2 - 4 (63 - 100)645 (1150)Galvanized20017.6
ZWR142744 - 6 (100 - 150)1045 (1150)Galvanized20049.0

A note about dimensions and tolerances
