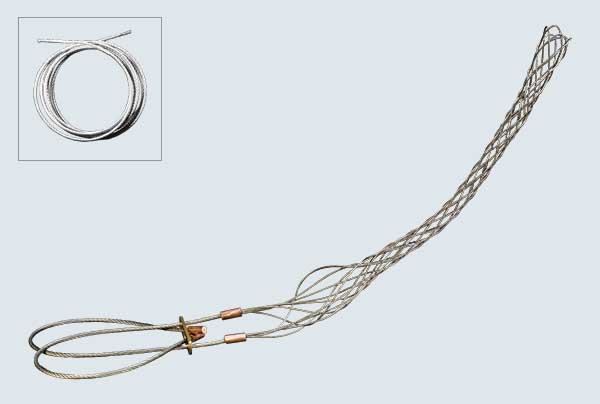

Universal Eye Split Mesh Lace Closing Support Grips

Universal eye split mesh lace closing support grips

Get in touch

Download info sheet

Save for later

Features and benefits

  • Made from 304 stainless steel
  • Designed with adjustable universal eye
  • Use when the end of the cable is not accessible

Fitted with an adjustable eye for easy and secure attachment, where the end of the cable is not accessible. Made from 304 Stainless Steel.

Slingco Part No. Range (mm) Lattice Length (mm) Approx. Break Load (kg)
ZCS267212 - 16254240
ZCS267316 - 19254360
ZCS267419 - 25330460
ZCS267525 - 31355730
ZCS267631 - 38381730
ZCS267738 - 44432730
ZCS267844 - 50483975
ZCS267950 - 635331,480
ZCS268063 - 765841,480
ZCS268176 - 896352,222
ZCS268289 - 1026862,222

A note about dimensions and tolerances

Slingco Part No. Range (in) Lattice Length (in) Approx. Break Load (lb)
ZCS26720.50 - 0.6310530
ZCS26730.63 - 0.7510790
ZCS26740.75 - 1.00131,020
ZCS26751.00 - 1.25141,610
ZCS26761.25 - 1.50151,610
ZCS26771.50 - 1.75171,610
ZCS26781.75 - 2.00192,150
ZCS26792.00 - 2.50213,260
ZCS26802.50 - 3.00233,280
ZCS26813.00 - 3.50254,900
ZCS26823.50 - 4.00274,900

A note about dimensions and tolerances

Related products

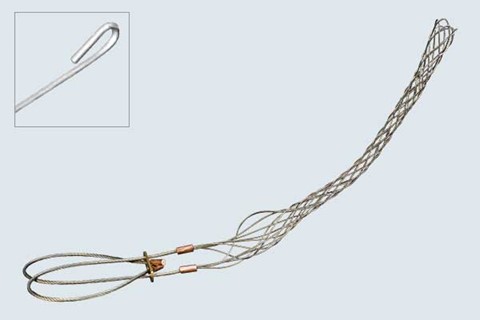

Universal eye split mesh rod closing support grips

Fitted with an adjustable eye for easy and secure attachment, where the end of the cable is not accessibl...

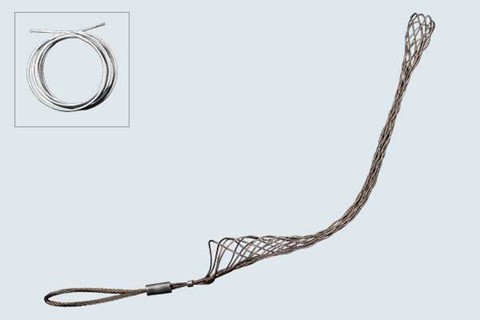

Offset eye split mesh lace closing support grips

This grip, in 304 Stainless Steel, is ideal for several support points along the same cable when the cab...

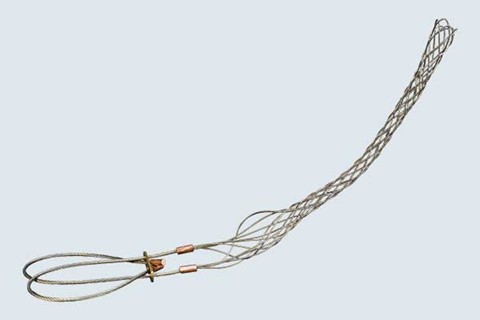

Universal eye closed mesh cable support grips
