Edge Mount Manhole Lead-In Cable Laying Roller (Heavy Duty)

Edge mount manhole lead in cable laying rollers

Get in touch

Download info sheet

Save for later

Features and benefits

  • Heavy duty tubular steel construction
  • Suitable for cables up to 130mm
  • 3 x 110mm diameter steel roller* fitted with sealed precision roller bearings
  • Zinc plated
  • Weight: 10 Kg

The manhole cable roller leads the cable from the drum into the jointbox/manhole or the winch bond out of the manhole.

* The Diablo Rollers can be substituted with a heavy gauge 89mm tubular Steel Roller fitted oil impregnated maintenance free bushes for use with the heavier cables.

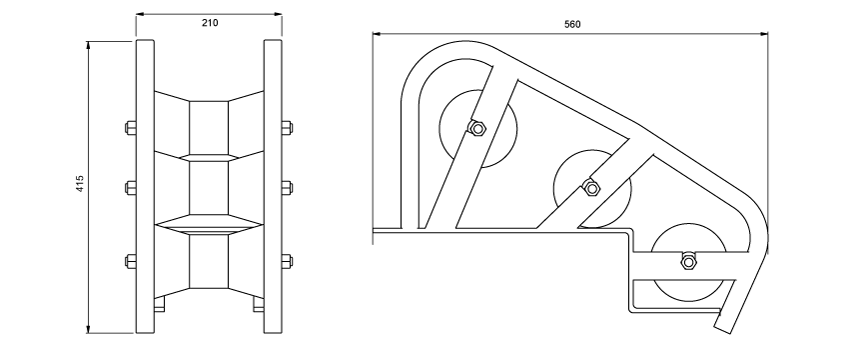

Edge Mount Manhole Lead-in Cable Roller (Heavy Duty)
Slingco Part No. Base Footprint (mm) Height (mm)
ZGP8209560 x 210415

A note about dimensions and tolerances

Slingco Part No. Base Footprint (in) Height (in)
ZGP820922 x 8.2516.34

A note about dimensions and tolerances

Related products

Heavy duty triple corner cable laying roller

This is a heavy duty corner cable roller for use in most cable laying applications. They can be used sing...

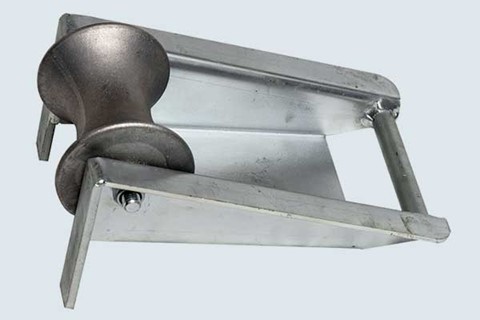

Edge Mount Manhole Lead-in Cable Roller (Light Duty)
