Tri & Quad Pulling Slings

TriLegPullingSling

Get in touch

Download info sheet

Save for later

Features and benefits

  • For simultaneous pulling multiple conductors
  • Helps to minimise the size of the pulling bundle
  • Available in 3 or 4 leg versions

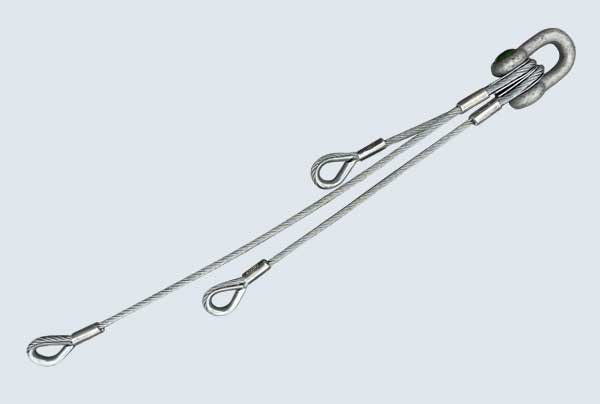

This staggered pulling sling is designed to allow the pulling of multiple conductors at the same time while minimizing the overall diameter of your pulling bundle. These pulling slings come in a three leg or four leg versions. One should use a swivel for each leg and at the head of the sling to release torsion and allow the conductors to rotate freely. The suggested swivels are listed with each model.

Tri and quad pulling slings

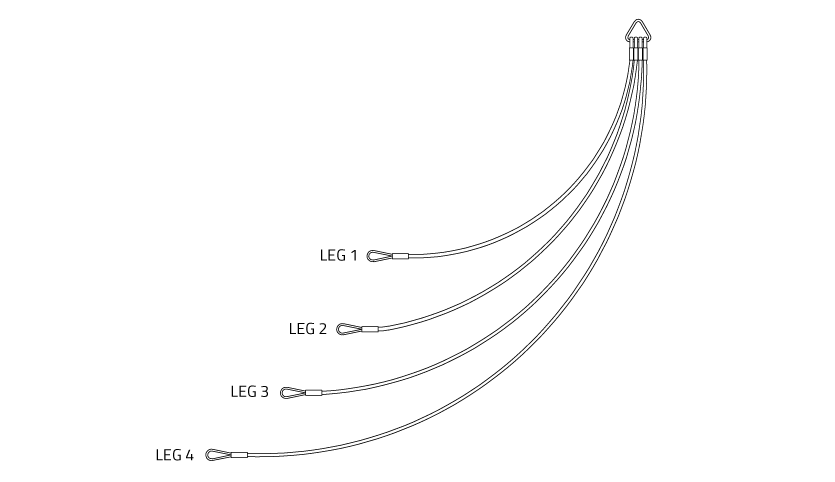

Slingco Part No. Leg 1 Length (mm) Leg 2 Length (mm) Leg 3 Length (mm) Leg 4 Length (mm) Head of Sling Swivel Suggestion Leg Swivel Suggestion
ZSH22645208801,340n/aZSW2092ZSW2091
ZSH22655208801,3401,760ZSW2092ZSW2092

Note:
Minimum break load – 5,000 lb

A note about dimensions and tolerances

Slingco Part No. Leg 1 Length (in) Leg 2 Length (in) Leg 3 Length (in) Leg 4 Length (in) Head of Sling Swivel Suggestion Leg Swivel Suggestion
ZSH226420.534.6552.75n/aZSW2092ZSW2091
ZSH226520.534.6552.7569.3ZSW2092ZSW2092

Note:
Minimum break load – 5,000 lb

A note about dimensions and tolerances

Don't see the product you need?

Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
