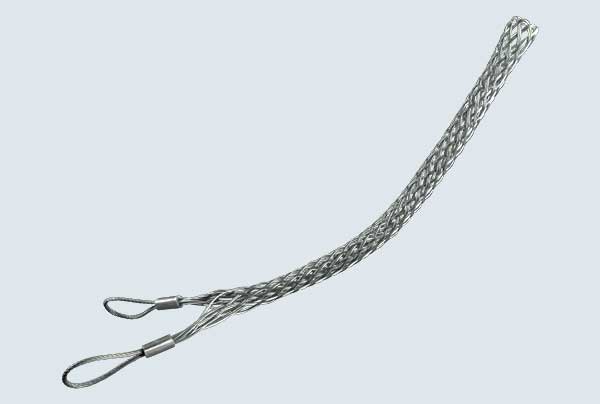

Flexible & Thimble Eye Cable Grips - Double Eye

Flexible and thimble eye cable grips double eye

Get in touch

Download info sheet

Save for later

Features and benefits

Specifically designed for metric sized cable
Available with soft or reinforced eye
Longer lattice length

Designed to fit the typical European range of cables, and with a longer lattice length, these grips are ideal for pulling medium to heavy loads. Made of galvanised steel.

This grip has a double eye construction allowing the cables being pulled to pass through the grip. Available with flexible eye or reinforced thimble eye.

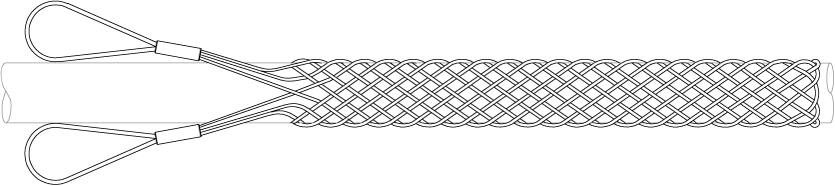

Flexible thimble eye cable grips double eye

Metric
Imperial

Flexible Eye	Thimble Eye	Type	Range (mm)	Lattice Length (mm)	Overall Length (mm)	Approx. Break Load (kg)
ZCS0837	ZCS3146	Single	15 - 20	1,250	1,500	1,240
ZCS0838	ZCS3147	Single	20 - 30	1,250	1,500	1,530
ZCS0839	ZCS3148	Double	20 - 30	1,250	1,500	1,990
ZCS0840	ZCS3149	Single	30 - 40	1,250	1,500	2,550
ZCS0841	ZCS3150	Double	30 - 40	1,250	1,500	3,060
ZCS0842	ZCS3151	Double	40 - 50	1,500	1,750	5,930
ZCS0843	ZCS3152	Double	50 - 60	1,500	1,750	6,630
ZCS0844	ZCS3153	Double	60 - 70	1,500	1,750	7,790
ZCS0845	ZCS3154	Double	70 - 90	1,500	1,750	8,110
ZCS0847	ZCS3155	Double	90 - 110	1,500	1,750	11,830
ZCS0848	ZCS3156	Double	110 - 130	1,500	1,750	11,830
ZCS0849	ZCS3157	Double	120 - 150	1,500	1,750	12,750
ZCS0850	ZCS3158	Double	140 - 180	1,500	1,750	12,750

A note about dimensions and tolerances

Flexible Eye	Thimble Eye	Type	Range (in)	Lattice Length (in)	Overall Length (in)	Approx. Break Load (lb)
ZCS0837	ZCS3146	Single	0.59 - 0.79	49	59	2,730
ZCS0838	ZCS3147	Single	0.79 - 1.18	49	59	3,370
ZCS0839	ZCS3148	Double	0.79 - 1.18	49	59	4,380
ZCS0840	ZCS3149	Single	1.18 - 1.57	49	59	5,620
ZCS0841	ZCS3150	Double	1.18 - 1.57	49	59	6,740
ZCS0842	ZCS3151	Double	1.57 - 1.97	59	69	13,060
ZCS0843	ZCS3152	Double	1.97 - 2.36	59	69	14,610
ZCS0844	ZCS3153	Double	2.36 - 2.76	59	69	17,160
ZCS0845	ZCS3154	Double	2.76 - 3.54	59	69	17,870
ZCS0847	ZCS3155	Double	3.54 - 4.33	59	69	26,070
ZCS0848	ZCS3156	Double	4.33 - 5.12	59	69	26,070
ZCS0849	ZCS3157	Double	4.72 - 5.91	59	69	28,100
ZCS0850	ZCS3158	Double	5.51 - 7.09	59	69	28,100

A note about dimensions and tolerances

Related products

Line Pulling Swivels - Bull Nose

Slingco's ‘bull nose’ style swivel is designed for underground and overhead applications. Swivels designe...

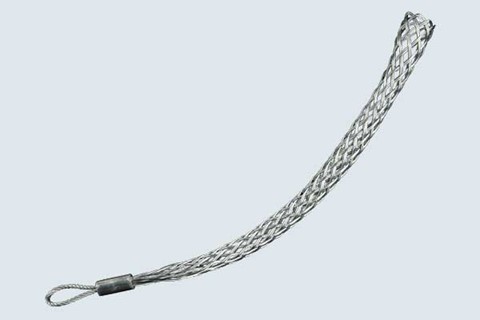

Flexible and thimble eye cable grips single eye
