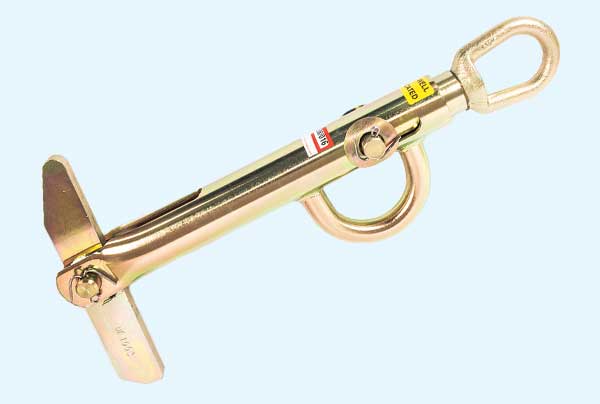

Reel Lifter SLINGCO PART NOS: ZLD08729 (3,000 LB), ZLD09186 (5,000 LB), ZLD10807 (12,000 LB)
Thank you for using Slingco® products. This manual must be read and understood prior to operating this product. Special attention should be paid to the section ‘Safety Information’.
ATTENTION
READ and UNDERSTAND all of the instructions and safety information in this manual before operating or servicing this tool.
Failure to read and understand these warnings and safe handling instructions could result in severe personal injury or death.
Download this manual as PDF.
SAFETY INFORMATION
Warning:
Hard hat required
- DO NOT operate without proper head protection.
Warning:
Suspended load
- Heavy suspended objects can fall. Can cause property damage, severe injury, or even death.
Warning:
Safety shoes required
- Safety shoes required when using this product.
Warning:
Pinch point hazard
- Keep hands away from mechanism, or serious injury may occur.
Warning:
Gloves required
- DO NOT operate without proper hand protection, or serious injury may occur.
Work area safety
- Keep the area around the equipment clean and free of obstruction.
- Bystanders should stay clear of the work area to ensure safety.
Personal safety
- Stay alert while using the equipment to prevent serious injury. Do not use under the influence of drugs, alcohol or medications.
- Do not wear loose hair or clothes that may get caught while the equipment is in operation.
- Work safely. Ensure firm footing, be properly secured, and do not over-extend yourself while operating equipment.
Tool use and care
- DO NOT use this tool if there are any abnormailities or damage to any of its components.
- Inspect the tool before and after every use. Do not use this tool if it is damaged in any way.
- When having the tool repaired, always use factory Slingco replacement parts. Tools must be serviced and/or repaired by Slingco or a factory authorized service center.
N.B. The Slingco Reel Lifter should be inspected in accordance with ASME section B.30.20-1.3.

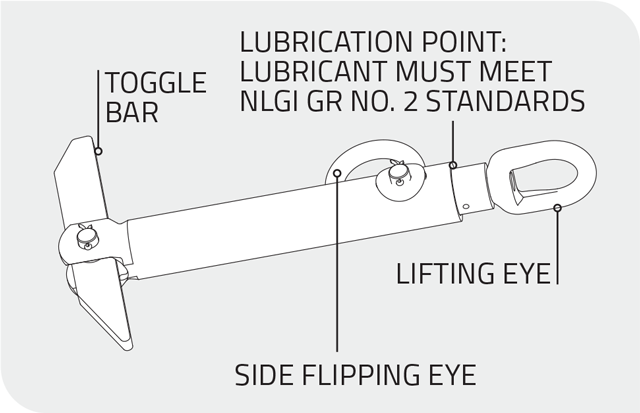

OPERATING INSTRUCTIONS

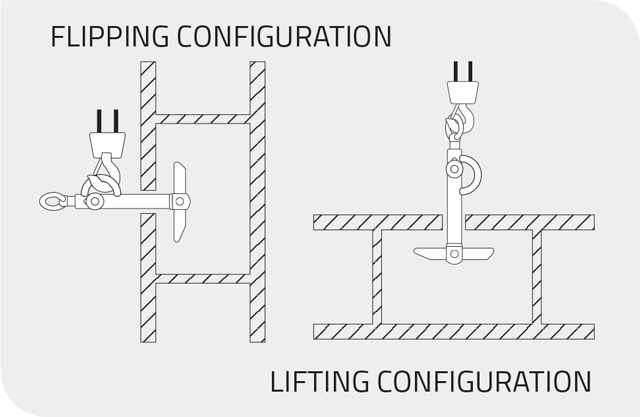

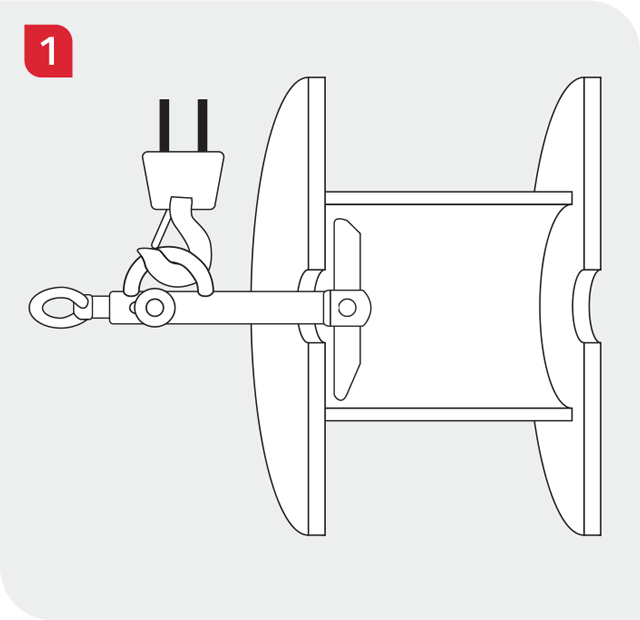

When the reel is in its rolling position, insert the Slingco Reel Lifter into the central hole. Then pull the reel lifter eye (remove nut) to engage the toggle bar. By using the side flipping eye, the reel can then be flipped to the lifting configuration.

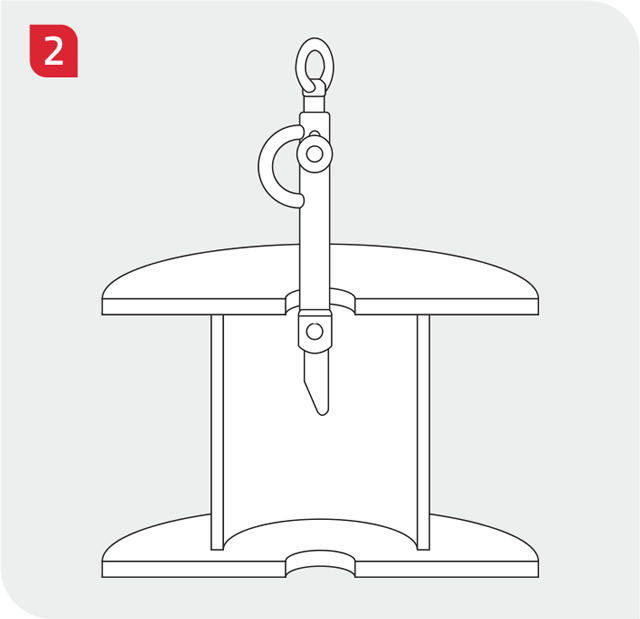

Once the reel is stable in its non-rolling position, lower the reel lifter down into the central hole.
Note: Once in the non-rolling position, the reel CANNOT be flipped back into the rolling position.

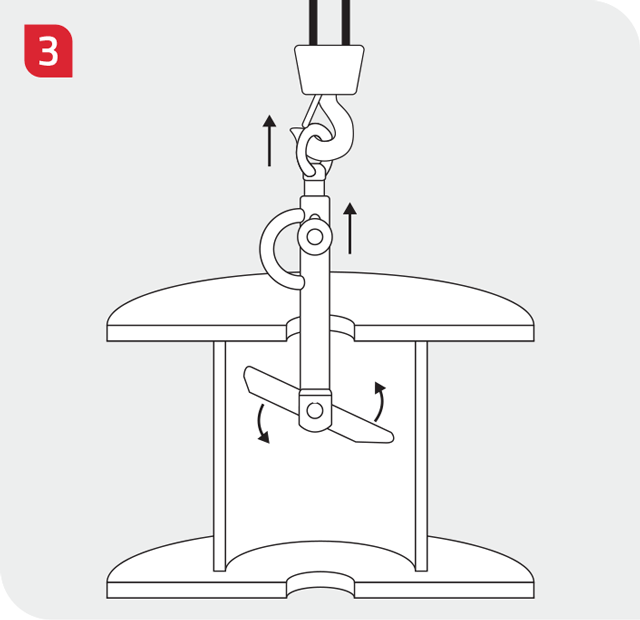

To lift the reel, use the reel lifter eye. The toggle bar will engage under the top of the reel.

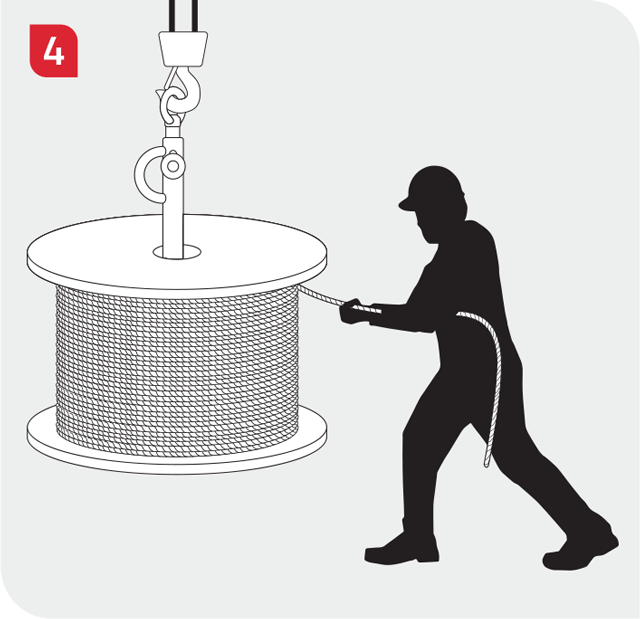

The reel can now be maneuvered where needed, and wire can be dispensed.
Slingco makes no warranty, express or implied, with respect to this product nor with respect to its specifications. In no event shall Slingco be liable for any direct, indirect, punitive, incidental, special consequential damages to property or life, whatsoever, arising out of or connected with the use or misuse of this product. This product is intended for use by qualified professionals having adequate knowledge of its proper use.
Version: v1.3.
