MLE (Motor Lead Extension) Guard Slingco 400 series part nos

Thank you for using Slingco® products. This manual must be read and understood prior to operating this product. Special attention should be paid to the section ‘Safety Information’.

ATTENTION

READ and UNDERSTAND all of the instructions and safety information in this manual before operating or servicing this tool.

Failure to read and understand these warnings and safe handling instructions could result in severe personal injury or death.

Download this manual as PDF.

SAFETY INFORMATION

Attention:
  • DO NOT perform any service or maintenance on this tool other than described in this manual.
  • Read and follow the operator’s manual before using this tool.
  • This manual should be kept available to all operating and maintenance personnel.

Description

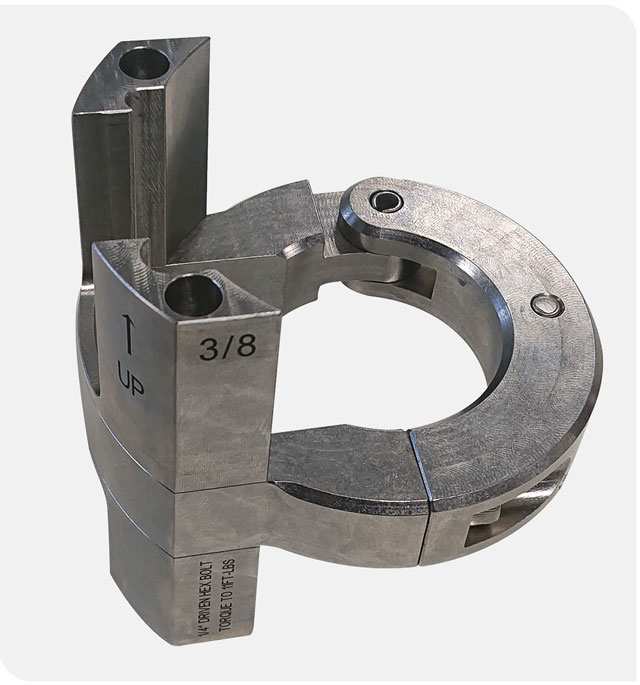

Slingco’s MLE guards are designed to provide cable management and protection to the MLE downhole.

Designed to be used with electrical submersible pumps (ESPs).

DO NOT remove spine bolt.

Torque rating: 11 ft-lb (14.9 Nm)

Material: 400 Grade Stainless Steel; 300 Grade Stainless Steel; 4140 Alloy Steel

Follow orientation on product

Each MLE Guard size is marked on the product.

Features and benefits

Slingco Part No. Description ID Size ‘A’ OD Size ‘B’ Length 'C' Cap line Ø ‘D’ Cap line Ø ‘G’
    in mm in mm in mm in mm in mm
ZMG12473 Pump to Pump 2.64 67.1 4.63 117.7 4 101.6 0.375 9.53 0.25 6.35
ZMG12474 Pump to Discharge 2.42 61.5 4.63 117.7 4 101.6 0.375 9.53 0.25 6.35
ZMG12475 Seal to Seal 2.25 57.2 4.63 117.7 4 101.6 0.375 9.53 0.25 6.35
ZMG11395 Motor or Seal 2.88 73.2 5.29 134.3 4 101.6 0.375 9.53 0.25 6.35

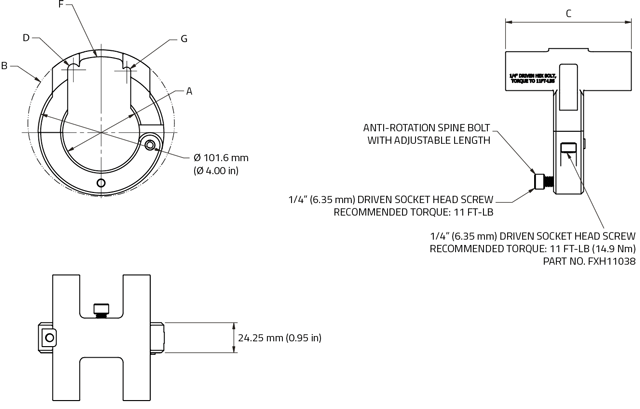

MLE Guard drawing

Slingco makes no warranty, express or implied, with respect to this product nor with respect to its specifications. In no event shall Slingco be liable for any direct, indirect, punitive, incidental, special consequential damages to property or life, whatsoever, arising out of or connected with the use or misuse of this product. This product is intended for use by qualified professionals having adequate knowledge of its proper use.

Version: V1.1.
